  Gravimetric Dosing System Details description
product name:Gravimetric Dosing System
release time:2020-05-13 14:28:02
Numbering:HGB-400
Brand:HENGJU
Price:¥USD 5990
simple description:Gravimetric blender also called as gravimetric dosing system or gravimetric batch blender, is an industrial device used in plastic production industry to dose or weigh two or more materials and then mix them together prior to processing in the molding machines. It's a high-end technology for the discontinuous blending of materials at the highest level of accuracy.
weight :300.00
unit weight:KG
characteristic:For Plastic Material Dosing and Mixing
patent:Automatic Weighing and Mixing Control System
manufacturer:HENGJU
Producing country:CHINA
Product alias:Weighing Scale Mixer
  Gravimetric Dosing System Product introduction

Gravimetric Dosing System parameter

Model HGB-400
Qty of Group  number  4
Mixing capacity(kg/hr) 400
Batch weight(kg) 4.5
Main material  mixing range(%) 5~100
Additive mixing range(%) 0.5~10
Main hopper volume(L) 45
Additive hopper volume(L) 45
Mixing barrel volume(L) 20
Power supply(V/Hz)
380/50
Total power(kW) 0.25
Compressed air (kgf/cm2) 6~8
Max. noise level(dB) <75
Note:
1) Dosing accuracy are refer to each ingredient accuracy ;
2) standard valves are not suitable powder dosing;
3) Max .output of each model and dosing accuracy are based on the data from bulk density 0.8 ,dia. 3~4mm pellets in a test criteria of continuous running.
We reserve the right to change specifications without prior notice .
Weighing Scale Mixer

Gravimetric Dosing System Equipment principle

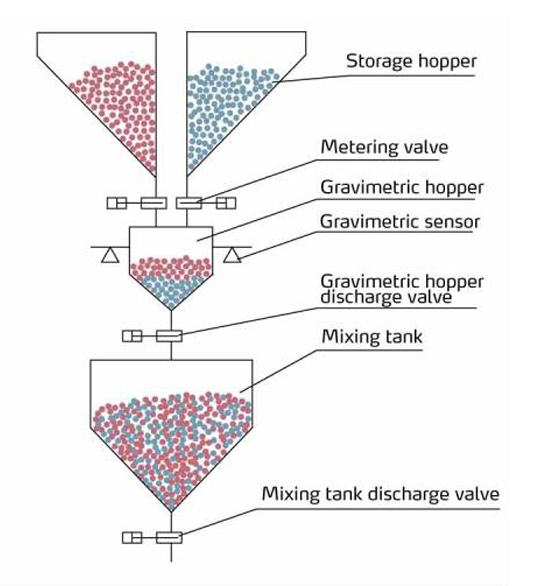

A gravimetric blender has two or more hoppers arranged above a weigh-pan which is controlled by a very sensitive load cell. And the hoppers will open and close under control of the slide-gate valve. Once the blender is turned on and the recipe is selected, it will dose and mix materials automatically.

For instance, if you select recipe A which is comprised of natural resin 90%, regrind 8%, color 2%, and you preset the batch weight as 1000g, then the PLC inside the blender will control the open/close of the hopper valves in order. First natural resin hopper open and resin flows down into the weigh-pan until it reaches 900g, then the valve closes. Secondly, the regrind hopper valve opens and regrind flows down into the weigh-pan until it reaches the amount of 80g, then the valve closes, and the same as the color. Once the batch has been weighed out, the contents of the weigh-pan are dispensed into a mixing chamber where they are blended. The resulting mixture exits the base of the mixing chamber into the processing machine.
Weighing Scale Mixer

Gravimetric Dosing System application

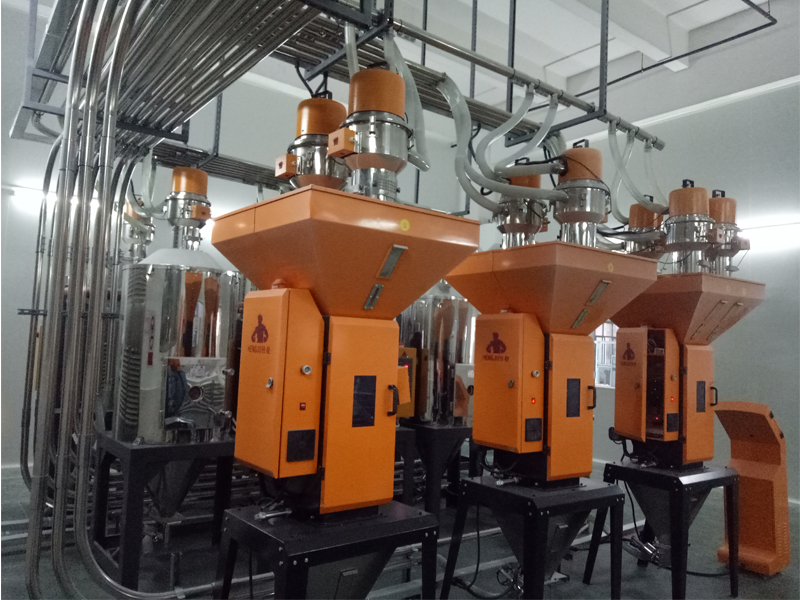

Now more and more customers are introducing gravimetric blender to their production for LED, auto parts, non-woven bag, film, bottles & containers, all injection parts, cables, and wire, etc. And the areas are expanding.
Hereafter are some application cases for your reference:

1) Gravimetric blender for injection molding production

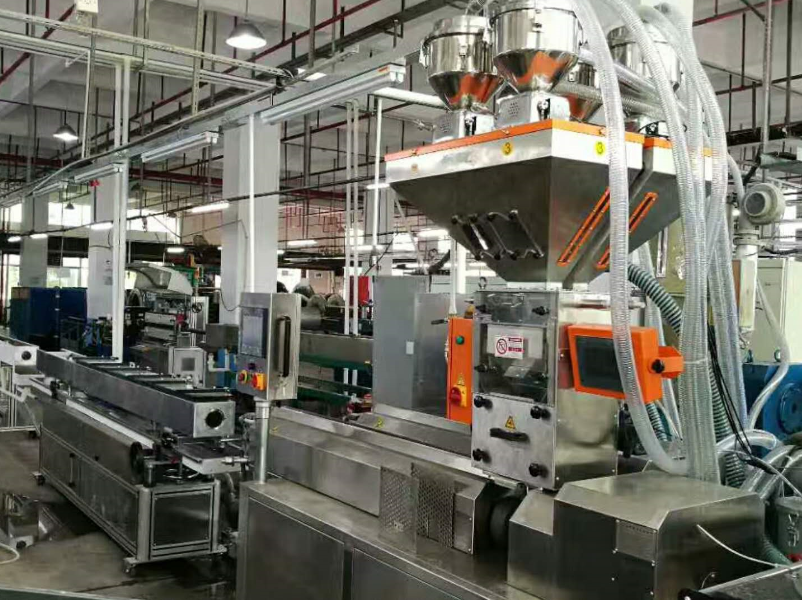

2) Gravimetric blender for extrusion


Weighing Scale Mixer

Gravimetric Dosing System Precautions

Before carrying out machine-related operations, the person who intends to operate and maintain the machine must read and understand the relevant contents of this operating manual, especially the safety-related parts.

The following safety instructions are particularly important to avoid personal injury and property damage:
1) Observe all safety and damage related information on the device.
2) Do not allow unauthorized persons to approach this device.
3) Before starting the device every time, make sure that no one is in the danger zone.
4) Please keep the device and the workplace clean and tidy, and ensure that the particles are not scattered on the ground. This may cause staff to slip and be injured.
